  Triplex Horizontal Plunger Pump - API674   Horizontal_Plunger_Pump- API674_Brochure.pdf

  HNT-DX-15000

  Specification Stroke 152mm Speed 300 RPM (maximum) Hydraulic Power 245 kW Weight 2000 kg (approx)

  Performance Data (Continuous Service)

  Liquid End Arrangement Plunger Diameter Discharge Pressure Displacement at 100 RPM M mm kg/cm2 PSI LPM m3.hr. 60 304 4410 138 8.3 65 259 3758 162 9.7 70 223 3240 188 11.3 75 195 2823 215 12.9 80 171 2481 245 14.7 L 85 152 2198 277 16.6 90 135 1960 310 18.6 95 121 1759 346 20.7 100 109 1588 383 23.0 105 99 1440 422 25.3 110 90 1312 472 28.3

  Note : Higher pressures are available on request. The performance data furnished is based on 100% volumetric efficiency considering test media as water at 30° C with the intension to be refered initially for preliminary purposes.

  The RPM shall be selected considering the other parameters like Viscosity, Specific Gravity, Abrasiveness, Vapour Pressure, Temperature & NPSH available.

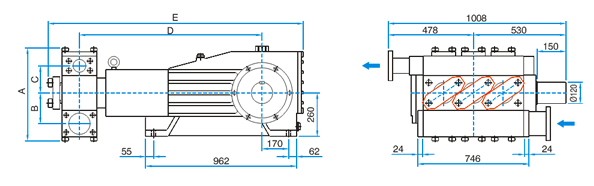

  Pump Dimensions (mm)

  Flanges (according to ANSI B 16.5) shown as per standard version. Other arrangements can be offered as per requirements.

  Arrangement Overall Dimensions(mm) Flanges A B C D E In Our M 455 120 110 1200 1653 4" 3" L 554 181 155 1252 1705 6" 3"

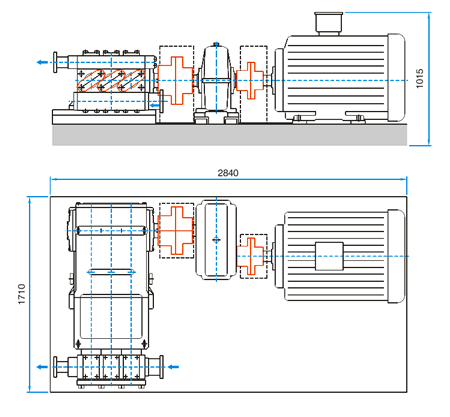

  Typical Pumping Unit

  - The overall dimensions are tentative and are based on medium installed power unit. - Approximate weight : 4100 Kg.

  Note : HIRO NISHA reserves the right to change the above data without any obligation for the pumps already sold or subsequently sold.
