  Triplex Horizontal Plunger Pump - API674   Horizontal_Plunger_Pump- API674_Brochure.pdf

  HNT-DX-6300

  Specification Stroke 76mm Speed 375 RPM (maximum) Hydraulic Power 45.2 kW Weight 371 kg (approx)

  Performance Data (Continuous Service)

  Liquid End Arrangement Plunger Diameter Discharge Pressure Displacement at 100 RPM L mm kg/cm2 PSI LPM m3.hr. 42 198 2879 32 1.9 46 165 2400 38 2.3 50 140 2031 45 2.7 54 120 1742 52 3.1 58 104 1510 60 3.6 62 91 1321 69 4.1 66 80 1166 78 4.7 70 71 1036 89 5.3

  Note :Higher pressures are available on request.

  The performance data furnished is based on 100% volumetric efficiency considering test media as water at 30° C with the intension to be refered initially for preliminary purposes.

  The RPM shall be selected considering the other parameters like Viscosity, Specific Gravity, Abrasiveness, Vapour Pressure, Temperature & NPSH available.

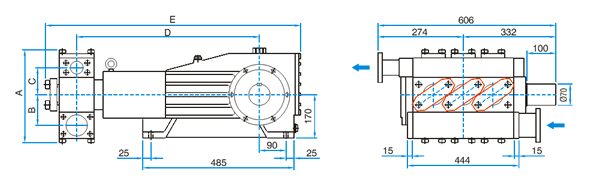

  Pump Dimensions (mm)

  Flanges (according to ANSI B 16.5) shown as per standard version. Other arrangements can be offered as per requirements.

  Arrangement Overall Dimensions(mm) Flanges A B C D E In Our L 433 164 152 660 956 3" 1.5"

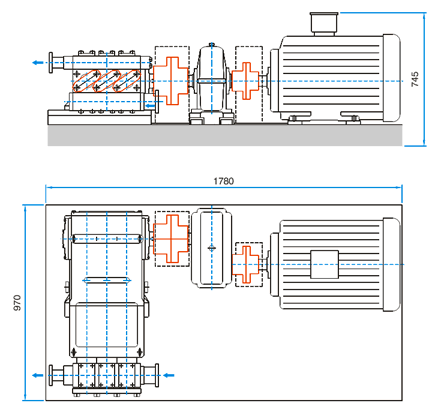

  Typical Pumping Unit

  - The overall dimensions are tentative and are based on medium installed power unit. - Approximate weight : 1110 Kg.
