  Triplex Horizontal Plunger Pump - API674   Horizontal_Plunger_Pump- API674_Brochure.pdf

  HNT-DX-7000

  Specification Stroke 105mm Speed 375 RPM (maximum) Hydraulic Power 118kW Weight 850 kg (approx)

  Performance Data (Continuous Service)

  Liquid End Arrangement Plunger Diameter Discharge Pressure Displacement at 100 RPM M mm kg/cm2 PSI LPM m3.hr. 45 321 4565 50 3.00 50 260 3698 62 3.72 55 214 3043 75 4.50 60 180 2560 89 5.34 L 65 155 2204 104 6.24 70 132 1877 121 7.26 75 115 1635 139 8.34 80 100 1422 158 9.48 85 88 1251 178 10.68

  Note : Higher pressures are available on request. The performance data furnished is based on 100% volumetric efficiency considering test media as water at 30° C with the intension to be refered initially for preliminary purposes.

  The RPM shall be selected considering the other parameters like Viscosity, Specific Gravity, Abrasiveness, Vapour Pressure, Temperature & NPSH available.

  The RPM shall be selected considering the other parameters like Viscosity, Specific Gravity, Abrasiveness, Vapour Pressure, Temperature & NPSH available.

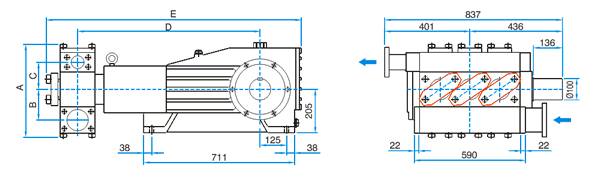

  Pump Dimensions (mm)

  Flanges (according to ANSI B 16.5) shown as per standard version. Other arrangements can be offered as per requirements.

  Arrangement Overall Dimensions(mm) Flanges A B C D E In Our M 375 120 107 949 1239 3" 2" L 455 145 128 955 1300 4" 2.5"

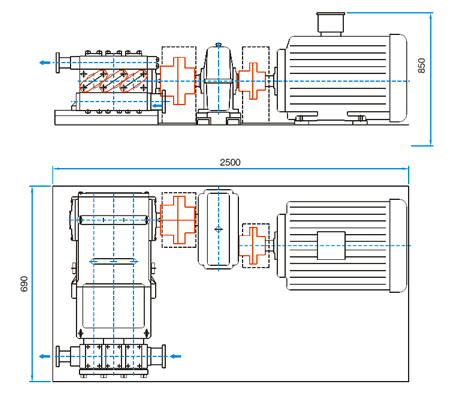

  Typical Pumping Unit

  - The overall dimensions are tentative and are based on medium installed power unit. - Approximate weight : 2100 Kg.

  Note : HIRO NISHA reserves the right to change the above data without any obligation for the pumps already sold or subsequently sold.
