  Triplex Horizontal Plunger Pump - API674   Horizontal_Plunger_Pump- API674_Brochure.pdf

  HNT-NV-7000

  Specification Stroke 100mm Speed 350 RPM (maximum) Hydraulic Power 70 kW Weight 425 kg (approx)

  Performance Data (Continuous Service)

  Liquid End Arrangement Plunger Diameter Discharge Pressure Displacement at 100 RPM L mm kg/cm2 PSI LPM m3.hr. 46 205 2968 50 3.0 50 173 2512 59 3.5 54 148 2154 69 4.1 58 129 1867 79 4.8 62 113 1634 90 5.4 66 99 1442 103 6.2 70 88 1282 115 6.9 74 79 1147 129 7.7 78 71 1032 143 8.6

  Note : Higher pressures are available on request.

  The performance data furnished is based on 100% volumetric efficiency considering test media as water at 30° C with the intension to be refered initially for preliminary purposes.

  The RPM shall be selected considering the other parameters like Viscosity, Specific Gravity, Abrasiveness, Vapour Pressure, Temperature & NPSH available.

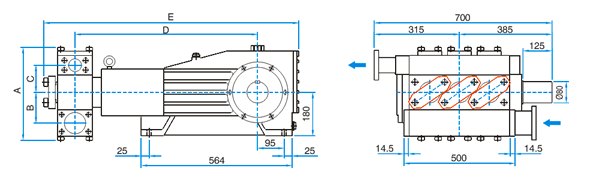

  Pump Dimensions (mm)

  Flanges (according to ANSI B 16.5) shown as per standard version. Other arrangements can be offered as per requirements.

  Arrangement Overall Dimensions(mm) Flanges A B C D E In Our L 506 194 182 758 1088 4" 2"

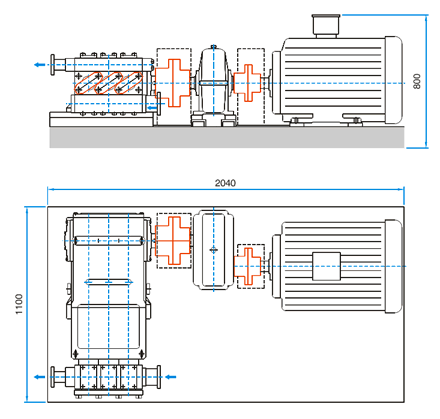

  Typical Pumping Unit

  - The overall dimensions are tentative and are based on medium installed power unit. - Approximate weight : 1320 Kg.

  Note : HIRO NISHA reserves the right to change the above data without any obligation for the pumps already sold or subsequently sold.
