Boge Compressors
-
Oil Injected Screw Compressors
C / CL series
C Module
Brochure352_EN_C-Series.pdf The BOGE C series: Maximum performance in a minimum space
Undisputed compact class, everything's included!The BOGE C series is as compact as powerful. The compressors are extremely compact and get to the heart of performance reality. The design advantages of the C series can not be ignored. This compressor unit simply has everything.
Effective FAD:
0,34 - 2,25 m3/min
12 - 80 cfm
Pressure range:
10 bar
145 psig
Drive rating:
2,2 - 15 kW
3 - 20 PSTwo compact modules - one philosophy
The design advantages of the BOGE C series :• Latest multifunctional intake control with integrated 2/3 way solenoid control valve
- no leaks, functional reliability• Silenced intake filter with paper filter cartridge
- filter separates 99.9 percent of all particles larger than 3 µm• Minimum pressure / check valve, integrated design
- no pipes, no leaks• BOGE airend with BOGE special profile and HD bearing
- high FAD at low energy consumption, outstanding availability• Gray cast iron casing with silencing properties
- sound insulation at its source, oil sump at lowest point• Thermostatic oil volume control
- easily accessible from the outside• CNC machined casing
- minimisation of leakage pointsThe integration of all essential BOGE components serves to eliminate pipe work and connection pipes. This virtually eliminates the potential for any oil leaks. All maintenance operations and access to wearing parts is easily accessible, without the need to strip down the compressor. Direct or belt drive, your option • electric motor drive (50 or 60 Hz)
• hydraulic drive
• Boge rotary screw technology
• drive shaftCalm and quiet • minimum noise generation
• extremely sound absorbing graphite mould
• almost zero vibrationLocation, your option • stationary in machines
• mobile in vehicles
• ideally suited for limited spaceC L / C LD up to 7,5 kW
TecData_C3L-C7LDR.pdf Practically inaudible
C L series: Screw compressors, compressed air systems, compressed air centres The directly coupled BOGE screw compressor C 3 L to C 7 LDR requires either V-belt or gearboxes. Compressor and motor are connected by means of a coupling, thus avoiding any transmission losses.
Effective FAD:
0,234 - 0,728 m3/min
8 - 25 cfm
Presure range:
10 and 13 bar
150 and 190 psig
Rated power:
2,2 - 5,5 kW
3 - 7,5 PSThis compact BOGE series is particularly suited as a: • compressor unit in existing compressor stations
• horizontally mounted compressor system on an compressed air receiver
• compressed air centre in conjunction with a refrigerant dryer mounted on a compressed air receiverHeat recovery: C L series compressors are available with heat exchanger for waste heat recovery.

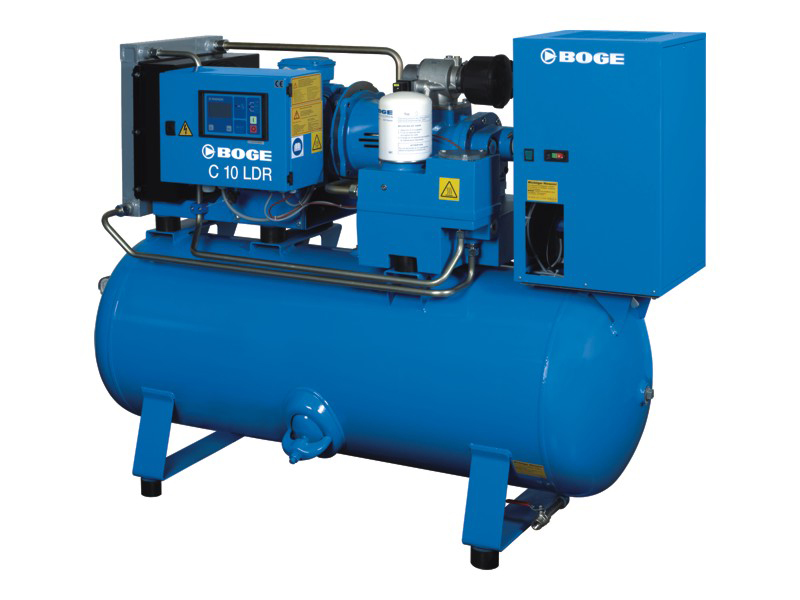

C L / C LD up to 15 kW
TecData_C10L-C20LDR.pdf A class of its own: The BOGE C L series
Effective FAD:
1,06 - 2,28 m3/min
37 - 80 cfm
Pressure range:
8 and 10 bar
115 and 150 psig
Rated power:
7,5 - 15 kW
10 - 20 PSCompressor series up to 15 kW asks little and gives everything Silent, compact, and extremely efficient. The space saving directly coupled screw compressors of the C L series are designed for very efficient economical operation and are equipped with optional horizontal receiver and/or mounted refrigerant dryer to be flexible and adaptable to the individual requirements of the respective situation of application. C / C D up to 7,5 kW
Small but enormous...
BOGE screw compressors C 4 to C 9 D
Effective FAD:
0,280 - 1,200 m3/min
10 - 42 cfm
Pressure range:
8 - 13 bar
115 - 190 psig
Rated power:
3 - 7,5 kW
4 - 10 PSThe belt driven BOGE screw compressors are equipped with the patented GM drive system for optimisation of every operating phase. These BOGE compressed air stations are also available as super silenced compact units with horizontal refrigerant dryer – no additional space is required. Owing to the intelligent BOGE design, servicing and maintenance can be carried out from the front from one side. The cooling air flow from the cold lower side toward the top provides intensive cooling of the component parts. This is a clever feature because it serves to ensure a long service life and optimal compressed air quality! C / C D up to 22 kW
TecData_C15-C30.pdf The BOGE C series as a real winner
Compressor series up to 22 kW with crucial design advantages
Effective FAD:
1,35 - 3,62 m³/min
47 - 127 cfm
Pressure range:
8 - 13 bar
115 - 190 psig
Rated power:
11 - 22 kW
15 - 30 HPCompressor series up to 22 kW with crucial design advantages Silent, compact, and extremely efficient. The models of the BOGE C series are real trend setters. The belt driven models of the BOGE C series up to 22 kW provide absolute efficiency and are virtually silent, requiring an extremely limited amount of space - even with integrated the dryer.The integrated design stands for small compact design and extremely low pressure losses. Aside from its remarkably low energy consumption the compact module of the BOGE C series is able to reliably generate a large Free Air Delivery.
