Hiro Nisha is a market leader in manufacturing & supplying of Industrial Triplex, Plunger and Piston Pumps of highest quality…

HNT-DX-2800

Low Pressure Triplex Pump (55 mm stroke)

Plunger Diameter mm	Discharge Pressure (kg/cm² )	Stroke Per Minute
		231	251	305	325	366	407	447	488
		Capacity in LPM
36	155	37	40	49	52	58	65	71	78
40	125	46	49	60	64	72	80	88	96
44	105	55	60	73	77	87	97	107	116
50	80	71	77	94	100	113	125	138	150
54	70	83	90	109	117	131	146	160	175
58	60	96	104	126	135	152	169	185	-

Power end of HIRO NISHA is manufactured of high quality material and design to match their rated horse power. All power ends are splash lubricated to achieve maximum life and minimum wear and tear of moving components.

HIRO NISHA offers a unique three piece liquid end for high pressure and easy maintenance. Our long practical experience in selecting right material for the liquid end assembly has become an important factor to achieve efficiency and long life.

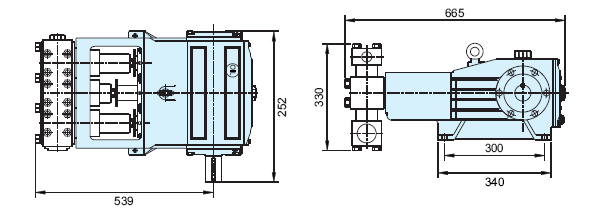

Typical Pump Dimensions (mm)

- Approx weight - 160 kg
- All performance data relevant to water at 20°C. (68°F) and based on 95% volumetric efficiency.

Unique Features

• Extra heavy duty power frame ensures uninterrupted smooth long life
• A wide variety of valves are available to suit different pumping fluids & applications
• A three piece liquidend block design avoids any possibility of block cracking
• Spring loaded plunger packing always ensures leak free pumping service
• Reversible valve seats double the normal life of valve seats thus become long lasting
• Quite smooth operation
• Totally dependable, reliable & efficient performance
• Easy to maintain, simple to repair & nominal maintenance

Accessories

• Safety Relief Valve
• Unloading Valve
• Unloading Valve
• Trigger Gun / Handle Bar
• High Pressure Hose
• Nozzle
