Hiro Nisha
-
Hiro Nisha is a market leader in manufacturing & supplying of Industrial Triplex, Plunger and Piston Pumps of highest quality… Triplex Horizontal Plunger Pump
Horizontal_Plunger_Pump_Brochure.pdf HNT-DX-3850
Low Pressure Triplex Pump (65 mm stroke)

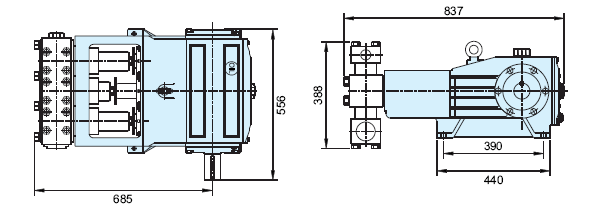

Plunger Diameter mm Discharge Pressure (kg/cm² ) Stroke Per Minute 222254293330366402440Capacity in LPM 50120819210712013314616054105941081241401551711875890109124143161179197215647513215117519721823926268651491711972222462702967260167192221249276303332Power end of HIRO NISHA is manufactured of high quality material and design to match their rated horse power. All power ends are splash lubricated to achieve maximum life and minimum wear and tear of moving components. HIRO NISHA offers a unique three piece liquid end for high pressure and easy maintenance. Our long practical experience in selecting right material for the liquid end assembly has become an important factor to achieve efficiency and long life.Typical Pump Dimensions (mm)
- Approx weight - 290 kg
- All performance data relevant to water at 20°C. (68°F) and based on 95% volumetric efficiency.Unique Features • Extra heavy duty power frame ensures uninterrupted smooth long life
• A wide variety of valves are available to suit different pumping fluids & applications
• A three piece liquidend block design avoids any possibility of block cracking
• Spring loaded plunger packing always ensures leak free pumping service
• Reversible valve seats double the normal life of valve seats thus become long lasting
• Quite smooth operation
• Totally dependable, reliable & efficient performance
• Easy to maintain, simple to repair & nominal maintenanceAccessories • Safety Relief Valve
• Unloading Valve
• Pressure Regulating Valve
• Trigger Gun / Handle Bar
• High Pressure Hose
• Nozzle
