HNT-N-2100

Low Pressure Triplex Pump (42 mm stroke)

Plunger Diameter mm	Discharge Pressure (kg/cm² )	Stroke Per Minute
		228	274	320	366	411	457	503	549
		Capacity in LPM
28	170	17	20	23	27	30	33	37	40
32	130	22	26	31	35	40	44	48	53
36	105	28	33	39	45	50	56	61	63
40	85	34	48	51	55	62	69	76	83
44	70	32	50	58	67	75	83	92	100

Power end of HIRO NISHA is manufactured of high quality material and design to match their rated horse power. All power ends are splash lubricated to achieve maximum life and minimum wear and tear of moving components.

HIRO NISHA offers a unique three piece liquid end for high pressure and easy maintenance. Our long practical experience in selecting right material for the liquid end assembly has become an important factor to achieve efficiency and long life.

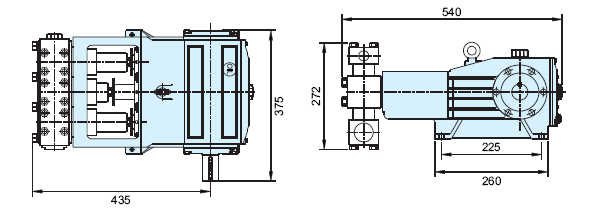

Typical Pump Dimensions (mm)

- Approx weight - 90 kg
- All performance data relevant to water at 20°C. (68°F) and based on 95% volumetric efficiency.

Unique Features

• Extra heavy duty power frame ensures uninterrupted smooth long life
• A wide variety of valves are available to suit different pumping fluids & applications
• A three piece liquidend block design avoids any possibility of block cracking
• Spring loaded plunger packing always ensures leak free pumping service
• Reversible valve seats double the normal life of valve seats thus become long lasting
• Quite smooth operation
• Totally dependable, reliable & efficient performance
• Easy to maintain, simple to repair & nominal maintenance

Accessories

• Safety Relief Valve
• Unloading Valve
• Pressure Regulating Valve
• Trigger Gun / Handle Bar
• High Pressure Hose
• Nozzle
