• Special Gas Applications
  Nitrogen Generator   Brochure356_EN_K8BOOSTER.pdf
  Flexible and efficient modular system for producing nitrogen

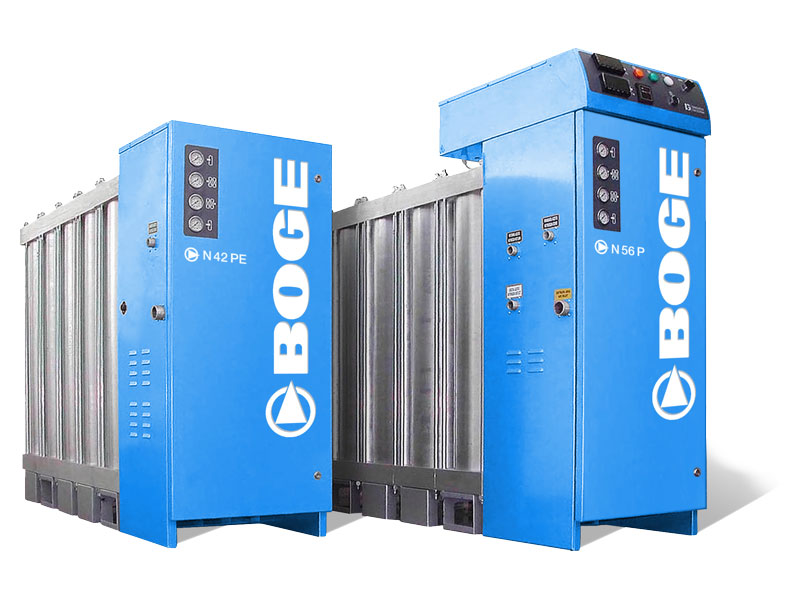

  Combining made easy with a modular system: the new BOGE Nitrogen Generators N 7 P to N 56 P
  Produce your own nitrogen right from the word go with the modular system from BOGE. With BOGE’s new nitrogen generators, you select the power, nitrogen output and purity level you require as and when you need it. This lets you boost your efficiency and produce nitrogen exactly the way you want it.
  Take advantage of BOGE‘s high-efficiency modular system, which is easy to expand and retrofit. Just screw it on and set the amount of nitrogen you wish to produce. Nitrogen with a constant purity of up to 5.0 (99.999%) will be generated using pressure swing adsorption (PSA) technology.
  BOGE nitrogen generators are designed with two interconnected receivers which are used alternately to ensure continuous nitrogen adsorption takes place. Using the pressure swing adsorption (PSA) method, the purified compressed air flows through a receiver fitted with a carbon molecular sieve (CMS). The oxygen molecules in the air are absorbed in this process until the CMS is saturated. By switching over to the other receiver, the process continues while the saturated receiver regenerates itself. This same process takes place in each of the modules.
  Advantages at a glance
  Minimal servicing costs
  Thanks to their high-quality components, resistant valves, durable adsorber material and their zirconium oxide sensor, BOGE Nitrogen Generators are practically maintenance-free and ensure high operational availability and excellent nitrogen quality.
  Highly flexible production
  With BOGE Nitrogen Generators you can adjust the purity level, delivery fl ow and nitrogen output fl exibly at any time to suit your current requirements. The generators waste in energy or money in producing nitrogen that is purer than required or on over-dimensioned systems. BOGE Nitrogen Generators adapt to suit you, not the other way round!
  Ultramodern control technology
  BOGE Nitrogen Generators can also be equipped with microprocessor or touchscreen controls. These operate in a network with a standard modem or GPRS. Remote control is also possible via the Ethernet interface.
  Superior quality
  With their high-quality CMS adsorber material, BOGE Nitrogen Generators are extremely reliable and achieve maximum service life, thanks to the superior quality of the materials used and the rigorous monitoring of the manufacturing process.
  Oxygen Generators   377_EN_Oxygen-Generator.pdf
  New generators from BOGE for tailor-made oxygen production

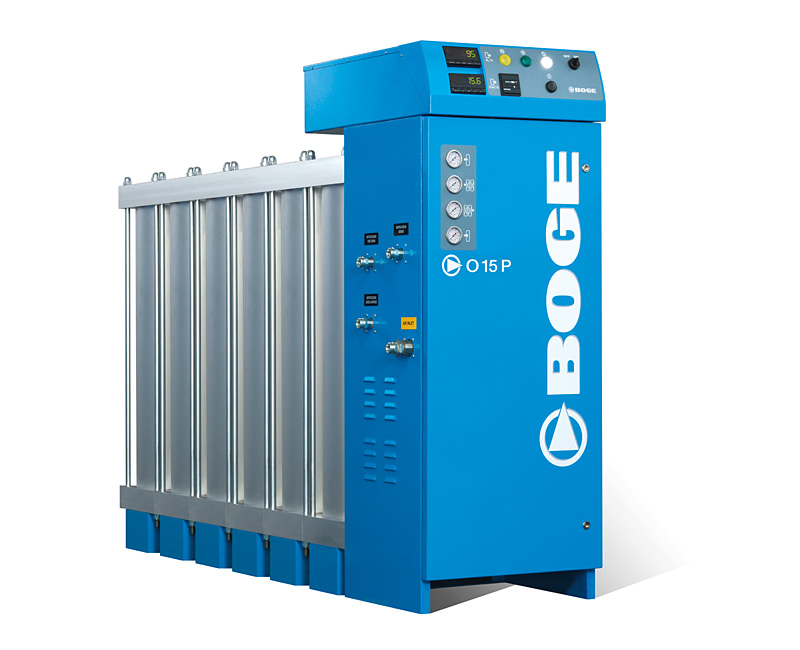

  Reliable and flexible: BOGE Oxygen Generators O 3 P to O 15 P
  Make yourself independent. With the new product range from BOGE, your compressed air specialist, you generate just the amount of oxygen you need in a reliable and cost-effective way.  BOGE generator types O 3 P to O 15 P and BOGE O 3 PE to O 15 PE produce oxygen with purity levels of between 90 and 95 percent. It is now possible to generate just the amount you need whenever you want to, making you independent of expensive external suppliers.
  BOGE Oxygen Generators produce oxygen using the high-efficiency Pressure Swing Adsorption (PSA) process. The basis for this process is two containers filled with zeolite molecular sieves (ZMS), which are flooded in turn with compressed air, and which physically separate the nitrogen from the oxygen. The oxygen obtained passes into the special container and is then ready for use.
  Modular and efficient - that's BOGE compressed air systems for you
  Expand your compressed air system with the practical BOGE modular system. Up to two expansion banks can be attached to any master bank. Each bank can hold up to six individual modules, which are very easy to fit. The standard basic control for BOGE Oxygen Generators displays up to two readings, such as oxygen purity and oxygen quantity. The premium control is optionally available for displaying additional readings.
  The optimally tailored complete system comprises a compressor, filter, refrigerant dryer, activated carbon adsorber, compressed air container, oxygen generator and oxygen container, ensuring a reliable and cost-effective supply of oxygen.
  Pressure Swing Adsorption: Two containers filled with zeolite molecular sieves (ZMS) are flooded in turn with purified compressed air to effect the physical separation of nitrogen and oxygen.
  Advantages for you at a glance
  Maintenance-friendly
  The stainless-steel valve housing, the wear-free zirconium oxide sensor and the zeolite molecular sieve ensure trouble-free operation and reliable oxygen quality. Thanks to their high-quality components, BOGE Oxygen Generators are practically maintenance-free.
  Efficient
  BOGE Oxygen Generators make you independent of suppliers. There are no more costs for storage, evaporation losses, or gas residues in rented cylinders or bottles. A more economic solution for generating a tailor-made supply of high-purity oxygen would be impossible to find.
  Safe
  With BOGE Oxygen Generators, the risks involved with storing high-pressure cylinders and handling oxygen bottles are a thing of the past. The analysis device and display constantly monitor the purity level and guarantee safe reliability.
  Compact
  As a system provider, BOGE offers you a comprehensive range of treatment components for use with the high-efficiency oxygen generators, whether you need sterile filters for the medical sector or specially coated oxygen gas containers.
