Versa-Matic offers a line of reliable submersible pumps that deliver a wide range of options, from size to pressure to flow rate. Our submersible pumps can run on non-electric power, are small enough to fit into tight places, and can deliver high flow or high pressure depending on the dewatering situation. We offer a number of pumps that let you choose the features you need.

Available Pumps:

•  Porta-Matic
   A handy portable unit that pumps everything from ditches to manholes
•  AP50
   Ideally suited for dewatering applications that require higher head pressures
•  SludgeMaster™
   Pump everything from mud and leaves to sand and solids without clogging

When you need to dewater fast, keep the Porta-Matic nearby to pump everything on your job site from ditches to manholes. This portable pump delivers up to 43 gpm and a head pressure of 25'. Powered by any 12-volt truck or auto battery, the Porta-Matic weighs just 33 lbs and provides whisper-quiet operation.

The Porta-Matic:

•  fits in openings as small as 10" diameter
•  is constructed of aluminum
•  operates without a suction hose, engine cranking, or gas cans
•  offers a low 30-amp draw for an average of an hour of operation without engine restarting
•  includes a remote waterproof controller for easy, safe operation
•  comes with both 1-1/2" NPT or BSPT (tapered thread) female connections
has a self-lubricating shaft seal and bearing is lubricated for life

When you need a pump that provides higher head pressures, get the AP50 air-driven high pressure pump. Capable of pumping up to 100 vertical feet while fully submerged, the AP50 runs on an efficient air motor with auto-start, making it the ideal tool for dewatering in situations where electricity is unavailable.

The AP50:

•  weighs 71 lbs
•  is constructed of cast iron
•  has a maximum head pressure of 100' vertical
•  offers sealed construction and a convenient carrying handle
•  is compact and will fit in openings as small as 16" diameter
•  provides easy maintenance and has a long service life
•  operates at low noise levels
•  is able to run dry without being damaged
•  can be operated safely in hazardous areas
•  includes an integral baseplate/strainer
•  features an open impeller for slurry and solids

For a pump that handles mud, leaves, sand, and any solid up to 1.5" without clogging, get the SludgeMaster™ air-driven high-flow pump. This trash pump operates at up to 300 gpm—our highest flow rate— runs on compressed air for continuous power supply. Weighing just 59 lbs, the SludgeMaster is constructed for rough handling and long life on land, sea, or offshore.

The SludgeMaster:

•  can run dry without damage
•  is constructed of cast iron
•  has a maximum head pressure of 65' vertical
•  won't choke on small trash
•  fits into openings as small as 14" diameter
•  is self-draining to prevent damage in subfreezing temperatures
•  is self-priming and continuous automatic lubricating
•  has an optional rock screen for 1/2" solids
•  handles abrasive substances with less wear

Sometimes you need more power than you can get from a standard air-operated double diaphragm pump. To fill that need, Versa-Matic offers a line of high pressure pumps that provide pressures of 200 psi or greater. With pumps made by Versa-Matic, America's leader in innovation, and Blagdon®, the number one manufacturer in Europe, you get more choices in size, pressure, flow rates, materials of construction, and functionality. Whether you're tackling filter press feeds, mine dewatering, slurry transfer, or high pressure discharge, Versa-Matic has a pump to fit your application:

Available Pumps:

•  E2HP 2" Standard Flow
   Get reliable performance in high pressure applications
•  N25 1" / N50 2" Full Flow
   Ideal for applications where pressure and flow rate are crucial

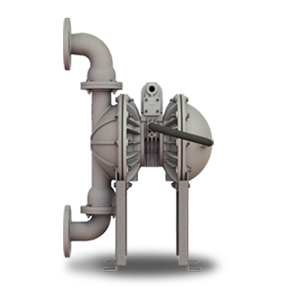

E2HP 2" Standard Flow

When pressure is critical, Versa-Matic's E2HP 2" high pressure pumps provide the performance you need. The E2HP features the Elima-Matic® Air Valve System for non-stalling, non-icing, and lube-free operation.

The E2HP:

•  delivers up to 200 psi of pressure
•  features a standard flow rate of up to 69 gpm
•  is constructed of stainless steel
•  features parts that are interchangeable with standard Versa-Matic stainless steel pumps

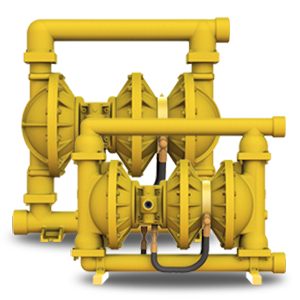

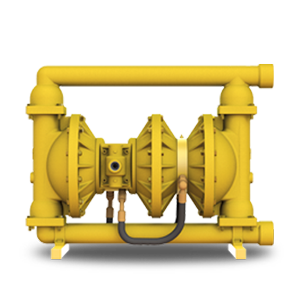

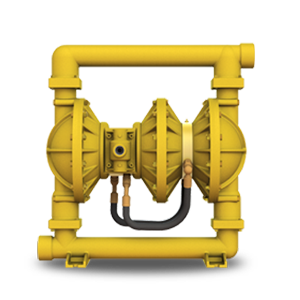

N25 1" / N50 2" Full Flow

Blagdon N25 1" and N50 2" full flow high pressure pumps offer enhanced power when pressure and flow rate are important. The N25 and N50 achieve discharge pressure up to 238 psi using two air chambers to double the amount of air per stroke. Included in the full flow design is an additional air chamber to provide higher flow rates with less pulsation, resulting in reduced wear on pipes and fittings.

The N25/N50...

•  are available in either aluminum or stainless steel
•  can start at zero head pressure with no diaphragm damage and no need for a separate fill pump

Elima-Matic® food-processing pumps are built with FDA-compliant materials so they can be specified in applications requiring FDA approval. The innovative Elima-Matic® air valve system virtually eliminates icing, stalling, and the need for lubrication. Elima-Matic® FDA pumps are available in 1/2", 1", 1-1/2", 2", and 3" sizes with an optional Versa-Sense™ leak detection system.

Elima-Matic® food processing pumps:

•  Are available in either plastic or metal
•  Ensure air valve efficiency and eliminate blow-by
•  Feature self-lubricating components
•  Provide smooth, linear air flow and higher flow rates
•  Allow for easy maintenance without the need for special tools or training

The Elima-Matic® sanitary pump has been designed to the 3A Sanitary Standards for Air or Hydraulically Driven Diaphragm Pumps for Milk and Milk Products, Number 44-01. Available in 1-1/2" and 2" sizes, sanitary pumps are available with the Versa-Sense leak detection system, which protects the product from contamination in the event of a diaphragm failure.

Elima-Matic® Sanitary Pumps:

•  Feature a surface finish of 32 µin (0.8 µm) or better on product contact surfaces and external surfaces
•  Assemble and disassemble quickly with tri-clamp connections and
wing-nut clamp bands
•  Include a rotating pump stand enabling a 180° rotation of pump for easy draining

AirVantage is advanced technology for AODD pumps that significantly reduces air consumption over conventional designs.

AirVantage Pumps:

•  Reduces air consumption up to 50%
•  Interchangeable center section upgrades for Wilden®
•  Automatically adapts to process conditions
•  Powered only by compressed air - No batteries
•  Increases productivity
•  Reduces compressor maintenance
•  Optimizes energy & performance
